Formulated for specialty aviation applications, EP90FR-V is a two part, non-halogenated epoxy meeting FAR standard 14 CFR 25.853(a) for flame retardancy. It passes the vertical burn test as well as Boeing specifications BSS 7238, Revision C for smoke density and BSS 7239, Revision A for toxicity.
Two component epoxy system meeting FAR standard 14 CFR 25.853(a) for flame retardancy also passes Boeing standard BSS 7238, Revision C for low smoke and BSS 7239, Revision A for toxicity
Key Features
- Tested as per Amendment 25-116 and Part 25 Appendix F
- Passes vertical burn test
- For bonding, sealing, coating and casting
- Convenient processing
Product Description
Master Bond EP90FR-V is a two component flame retardant epoxy system for bonding, sealing, coating and potting. It has been tested to the standards mentioned above, and fully complies with the rigorous vertical burn test specification. This allows it to be considered for use in highly specialized aviation applications. The most noteworthy applications include interior panels, door frame lining and floor and door assemblies. Since it is a superior electrical insulator, it is also a candidate for electronic potting and sealing applications. Additionally, it should be noted that EP90FR-V is a non-halogenated type system, which is a big positive with regard to handling and environmental issues.
EP90FR-V has an easy to use, forgiving, one to one mix ratio by weight. This moderate viscosity system has a very long open time with the recommended curing for optimizing properties being overnight at room temperature followed by 3-4 hours at 150-200°F. It bonds well to a variety of substrates including metals, composites, glass, ceramic and many plastics. The service temperature range is -60°F to +250°F. It has good chemical resistance to water, fuels, oils and many common solvents. The color of Part A is black, Part B is white and the cured material is gray. This system is color coded, which facilitates mixing. EP90FR-V is a specialty product primarily for aviation type applications or by extension, in avionic related applications, where the demanding requirements of the vertical burn test are needed.
Product Advantages
- One to one mix ratio by weight and color coded

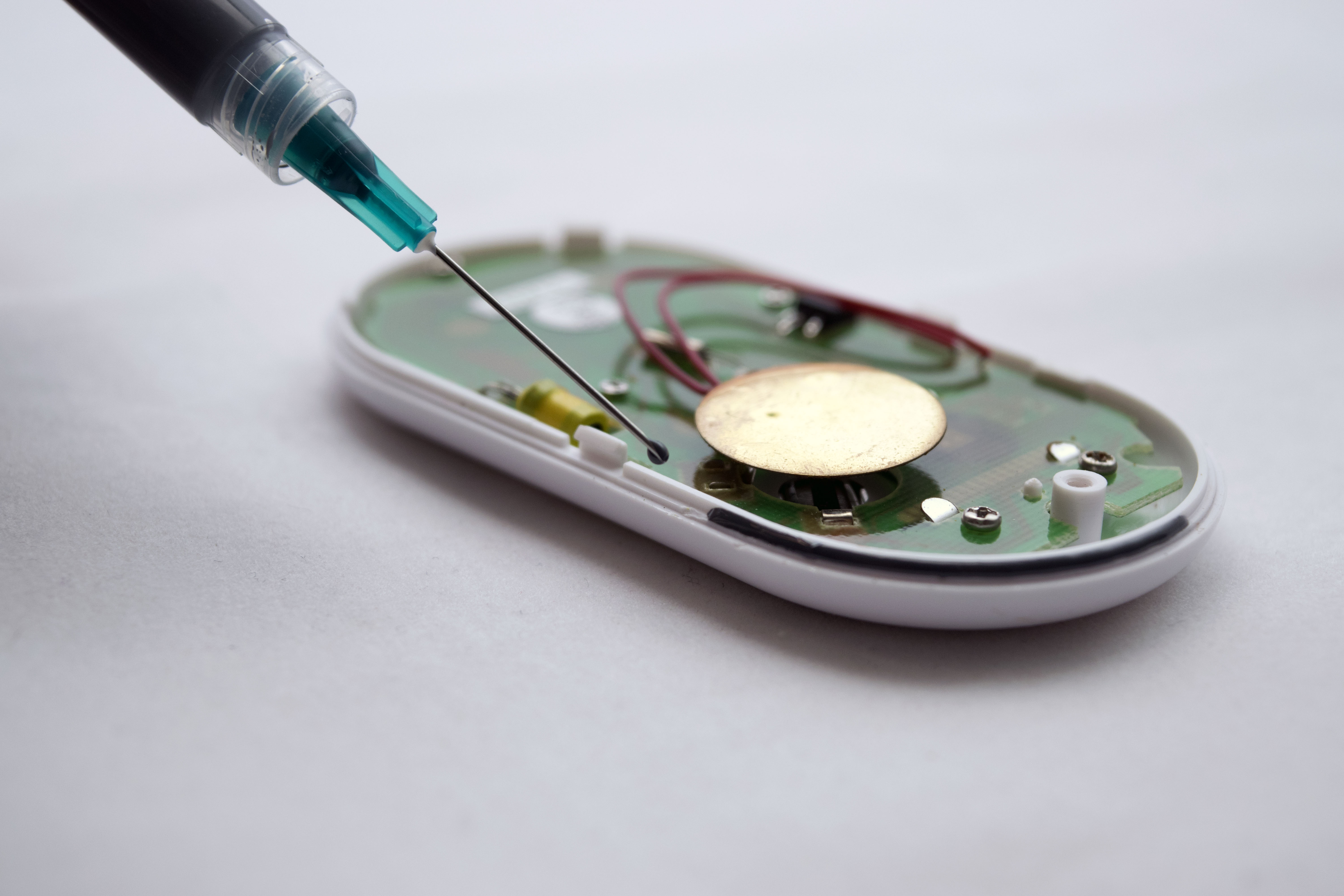

- Excellent electrical insulator
- Top notch adhesion to a wide variety of substrates
- Low shrinkage upon curing
- Passes the stringent vertical burn test portion of the FAR standard 14 CFR 25.853(a) for flame retardancy
- Passes Boeing specifications BSS 7238, Revision C for smoke density and BSS 7239, Revision A for toxicity
- Non halogen filler
Industrial Certifications
FAR 25.853(a) for Flame Retardancy
Boeing Standards for Flame Retardancy
Meets EU Directive 2015/863
Packaging
Cans
Pails
Premixed & Frozen Syringe
EP90FR-V is available is various sizes and units to accommodate customer's needs.
