Toughened, high strength, two component epoxy for bonding and sealing

Key Features

  • Convenient handling
  • Thermally conductive & electrically insulative
  • Withstands 1,000 hours 85°C/85% RH
  • NASA low outgassing approved

Product Description

Master Bond Supreme 11AOHT-LO is a two component epoxy resin system for high performance bonding and sealing. Although, it is formulated to cure at room temperature, the best cure schedule to attain optimal properties, including NASA low outgassing, is overnight at room temperature followed by a few hours at 150-200°F. It has a convenient one to one mix ratio by weight or volume. Its most outstanding features include high thermal conductivity, excellent electrical insulation properties and temperature resistance up to +400°F. Supreme 11AOHT-LO is a “toughened” system which enables it to withstand rigorous thermal cycling and makes it well suited for bonding dissimilar substrates. It has excellent adhesion to most metals, ceramics, and glass as well as many rubbers and plastics. Its chemical resistance profile includes water, oil and fuels. The color of Part A is gray and the color of Part B is off-white. Supreme 11AOHT-LO is widely used in electronic, electro-optic, aerospace and vacuum applications where high strength, excellent thermal transfer properties, and high temperature resistance are required.

Product Advantages

  • Convenient processing, one to one mix ratio
  • Versatile cure schedules
  • High lap shear strength
  • Can withstand rigorous thermal cycling
  • Low shrinkage and high dimensional stability

Industrial Certifications


ASTM E595 Compliant

1,000 Hours at 85°C/85% RH

Meets EU Directive 2015/863

Packaging


Cans

Gun Applicator

Pails

Supreme 11AOHT-LO is available is various sizes and units to accommodate customer's needs.

Visual Media

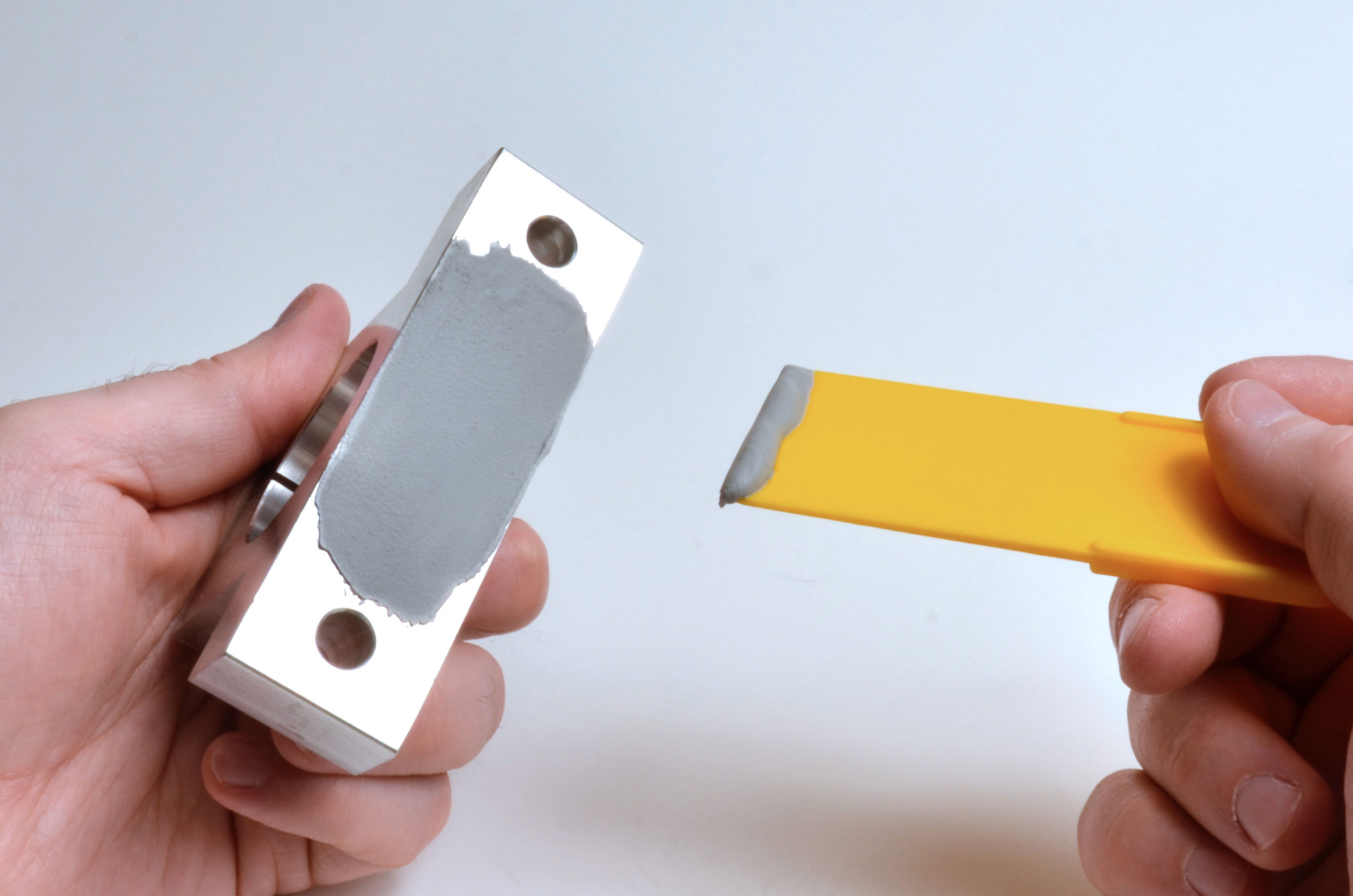

Thermally Conductive, NASA Low Outgassing Epoxy System Supreme 11AOHT-LO

Master Bond Supreme 11AOHT-LO is a two component epoxy resin system for high performance bonding and sealing.
Its most outstanding features include high thermal conductivity, excellent electrical insulation properties and temperature resistance up to 400°F.
